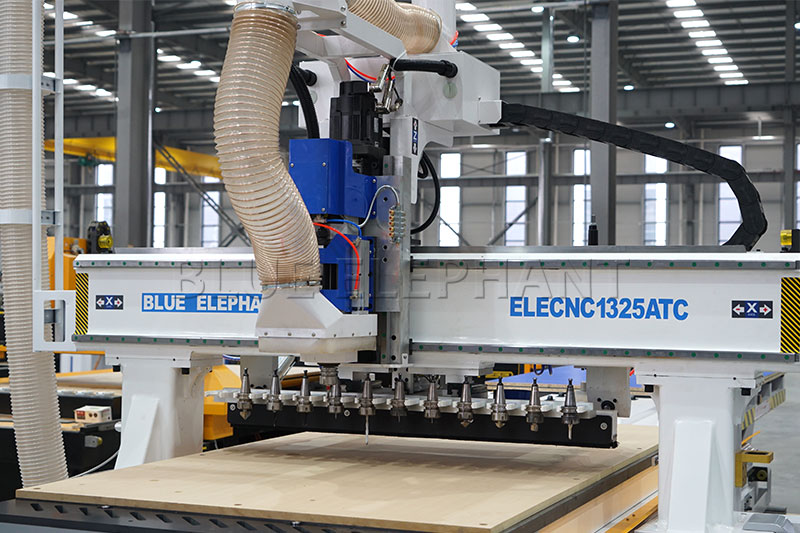

ELECNC-1325 Auto Feeding Furniture Production Line

Free Quote

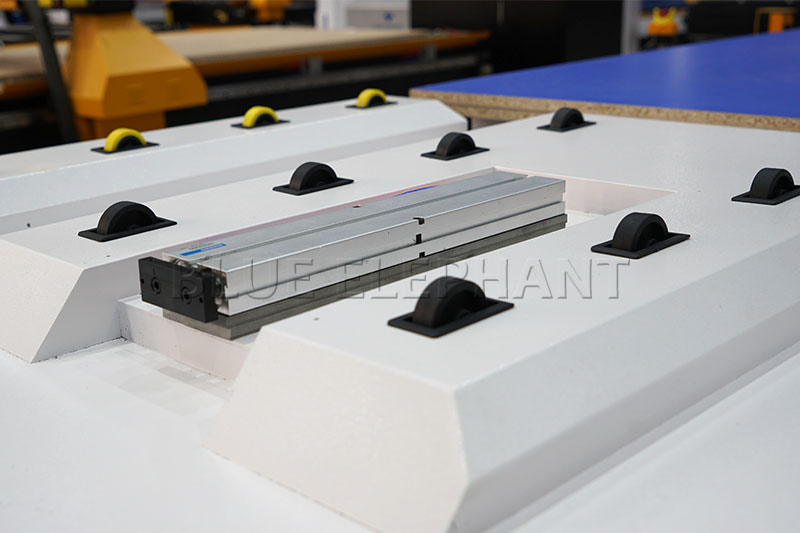

Equipped with a pushing device, this machine can automatically pushes the plate off the processing table, which is convenient for the operator to take the material. With the double-station equipment and uninterrupted processing, which can greatly saving time and realize maximum productivity. In addition, the machine can achieve an optimized layout to achieve the processing of shaped materials, so that the sheet utilization rate is as high as 95%.
  •  ELECNC-1325 Auto Feeding Furniture Production Line
  • ELECNC-1325 Auto Feeding Furniture Production Line1
  • ELECNC-1325 Auto Feeding Furniture Production Line2
  • ELECNC-1325 Auto Feeding Furniture Production Line3
  • ELECNC-1325 Auto Feeding Furniture Production Line4
  • ELECNC-1325 Auto Feeding Furniture Production Line
  • ELECNC-1325 Auto Feeding Furniture Production Line1
  • ELECNC-1325 Auto Feeding Furniture Production Line2
  • ELECNC-1325 Auto Feeding Furniture Production Line3
  • ELECNC-1325 Auto Feeding Furniture Production Line4
  • ELECNC-1325 Auto Feeding Furniture Production Line
  • ELECNC-1325 Auto Feeding Furniture Production Line1
  • ELECNC-1325 Auto Feeding Furniture Production Line2
  • ELECNC-1325 Auto Feeding Furniture Production Line3
  • ELECNC-1325 Auto Feeding Furniture Production Line4

Features:

  • Good effect of processsing:High precision , cutting material very smoothly , Automatic design , automatic classification, without human intervention.
  • Improve work efficiency:Auto feeding materials, automatic layout optimization , improve material utilization. and this is one of the typical features of Wooden Furniture CNC.
  • Save working time:Automatic feeding , save the time of labor , no human intervention , minimizing error rate to minimum , ensure the quality of the order.
  • User friendly Machine control interface design. Workers can operate the machine expertly just by simple training.

Video:

Parameter:

Travelling size 2500x1260x200mm
Working size 2440x1240x50mm
Table size 2440x1250mm
Table Surface Vacuum absorption Table
Load & unload speed 15m/min
X, Y Structure Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings
Z Structure Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
Spindle power 9.0kw Italy HSD ATC air cooling spindle
Spindle speed 0-24000rpm/min
Travelling speed 45m/min
Working speed 20m/min
Tool magazine Armless
Drive Motors Japan YASKAWA
Working Voltage AC380V/50/60Hz,3PH
Control System Taiwan SYNTEC control system
Software Compatibility Type3 Software, (Option: Artcam Software
Running Environment Temperature 0 – 45 Centigrade

Application

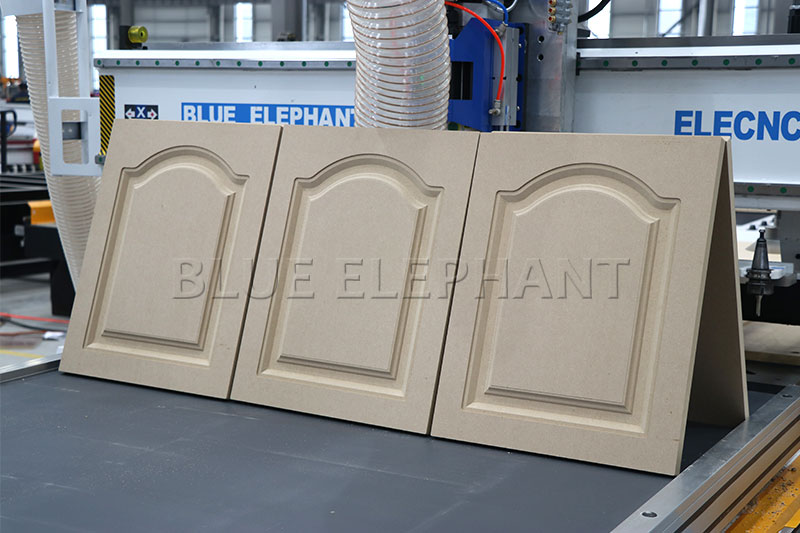

  • Wood furniture industry: Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
  • Advertising industry: Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
